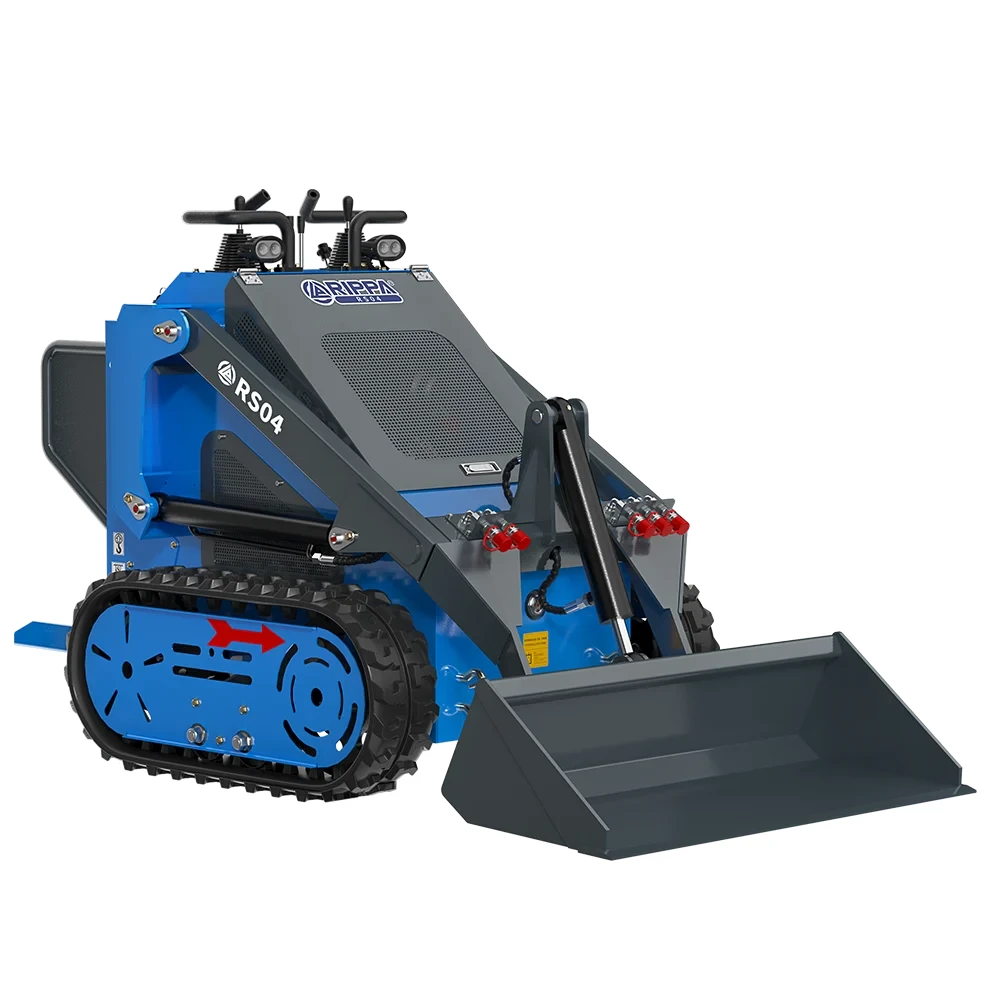

Mini Loader Rippa RS-04

The Rippa RS-04 mini loader is a compact, high-performance diesel-powered machine designed for landscaping, construction, agriculture, and material handling work. This model offers strong lifting capability, smooth hydraulic performance, and reliable operation for everyday use.

Key Features

Engine:
Reliable Kubota Z482 twin-cylinder diesel engine.

Hydraulics:
Triple-gear hydraulic pump system with a flow rate of approximately 14.4 + 9.6 + 9.6 L/min, ensuring smooth and responsive control.

Cooling System:
Water-cooled engine for stable operating temperature and reliable performance.

Design:
Compact and heavy-duty structure, ideal for narrow access areas and confined job sites.

Mobility:
Modular platform compatible with wheel or track configurations, allowing the loader to adapt to different surfaces and working conditions.

Maintenance:
Easy access to service points and durable components ensure long-term reliability and simpler maintenance.

Technical Specifications

Engine

Engine brand: Kubota
Engine model: Z482
Rated power: 11.1 HP / 8.3 kW at 3600 rpm
Fuel type: Diesel
Cooling system: Water-cooled

Main Operating Parameters

Operating weight: 890 kg
Rated load capacity: 175 kg
Maximum load: 400 kg
Bucket capacity: 0.15 m³
Bucket width: 1150 mm / 115 cm

Maximum loading height: 2080 mm / 208 cm
Maximum unloading height: 1553 mm / 155.3 cm
Maximum unloading distance: 550 mm / 55 cm
Ground clearance: 108 mm / 10.8 cm
Ground pressure: 25.17 kPa
Gradeability: 25%

Travel speed, low gear: 0–2.5 km/h
Travel speed, high gear: 0–3.0 km/h

Transport Dimensions

Length × width × height:
1970 × 1150 × 1300 mm
197 × 115 × 130 cm

Hydraulic System

Hydraulic pump type: Gear pump PGP64422H92
Hydraulic brand: Tianjin Walk / Tengfei
Travel motor: Deston BM5-315
Drive system: Triple-gear hydraulic system, approximately 14.4 + 9.6 + 9.6 L/min

Applications

Construction: digging, backfilling, grading, and general site work.
Landscaping: soil preparation, trenching, and debris removal.
Agriculture: material handling, cleaning work, and barn maintenance.
Snow removal and utility work: snow clearing and property maintenance.

Compatible Attachments

Hydraulic breaker, auger, pallet forks, mixer bucket, grabber, snow blade, and other attachments.

Why Choose Rippa RS-04?

Efficient power: Kubota diesel engine ensures reliable performance and low fuel consumption.
Compact and maneuverable: ideal for confined job sites and easy transport.
Versatile performance: suitable for different industries, applications, and terrain types.
Durable construction: reinforced components allow operation in demanding environments.
User-friendly operation: smooth hydraulic response and intuitive controls make work easier for the operator.

* Accessories are not included in the base price.
