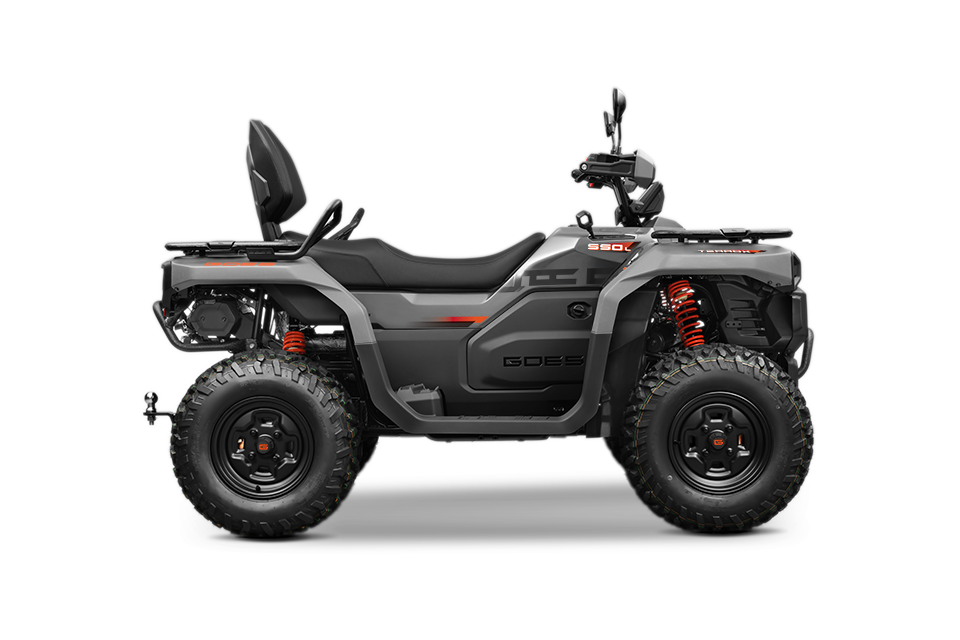

REGISTERED T3B GOES TERROX 550L by CFMOTO

GOES TERROX 550L T3b is a two-person ATV, designed to combine reliable performance with passenger comfort. Equipped with a 499 cc, 39 HP single-cylinder engine, this model delivers the power, stability, and endurance required for both demanding tasks and longer off-road journeys.

DESIGN AND COMFORT

The TERROX 550L features an extended and reinforced chassis, ensuring stability and comfort for both the rider and the passenger.
Ergonomic seating and optimized legroom allow for a comfortable posture even during long trips or intensive workdays.
The redesigned right-hand gear shifter provides intuitive control, while the narrow engine configuration maximizes leg comfort.

TOWING AND LOAD CAPACITY

This model is built for serious work:

• Towing capacity – up to 700 kg
• Front rack – up to 40 kg
• Rear rack – up to 80 kg
• MOLLE quick attachment system ensures secure and flexible mounting of equipment and cargo

PERFORMANCE AND TRANSMISSION

The single-cylinder, liquid-cooled, four-stroke engine with BOSCH EFI fuel injection ensures:

• smooth operation
• efficient fuel consumption
• reliable performance in all conditions

CVT automatic transmission (H/L/N/R/P) allows easy control and adaptation to any terrain.

SUSPENSION AND BRAKES

• Front suspension: independent, double A-arm (200 mm travel)
• Rear suspension: independent, double A-arm (227 mm travel)
• Shock absorbers: oil-filled (hydraulic)
• Brakes: hydraulic disc brakes front and rear

This ensures maximum comfort, traction, and safety even in the toughest conditions.

TECHNICAL SPECIFICATIONS

ENGINE:

• Type: Single cylinder, 4-stroke, liquid-cooled
• Displacement: 499 cc
• Maximum power: 39 HP
• Maximum torque: 44 Nm
• Fuel system: BOSCH EFI

TRANSMISSION AND DRIVE:

• Transmission: CVT (H/L/N/R/P)
• Drive: 2WD / 4WD / 4WD with differential lock

DIMENSIONS AND WEIGHT:

• Length × width × height: 2410 × 1200 × 1467 mm
• Wheelbase: 1480 mm
• Ground clearance: 275 mm
• Turning radius: 5700 mm
• Dry weight: 365 kg
• Towing capacity: 700 kg
• Load capacity: 270 kg
• Fuel tank capacity: 17 L

SUSPENSION:

• Front: independent, double A-arm, 200 mm travel
• Rear: independent, double A-arm, 227 mm travel
• Shock absorbers: spring, oil-filled

BRAKES:

• Type: hydraulic disc brakes (front and rear)

WHEELS AND TIRES:

• Rims: steel, 12 inch
• Front tires: 25×8.00-12
• Rear tires: 25×10.00-12

COLORS:

• Pinehill Green
• Steelcore Grey

ADDITIONAL INFORMATION:

• Registered as agricultural machinery (T3b category)
• Perfect choice for both work and active leisure
