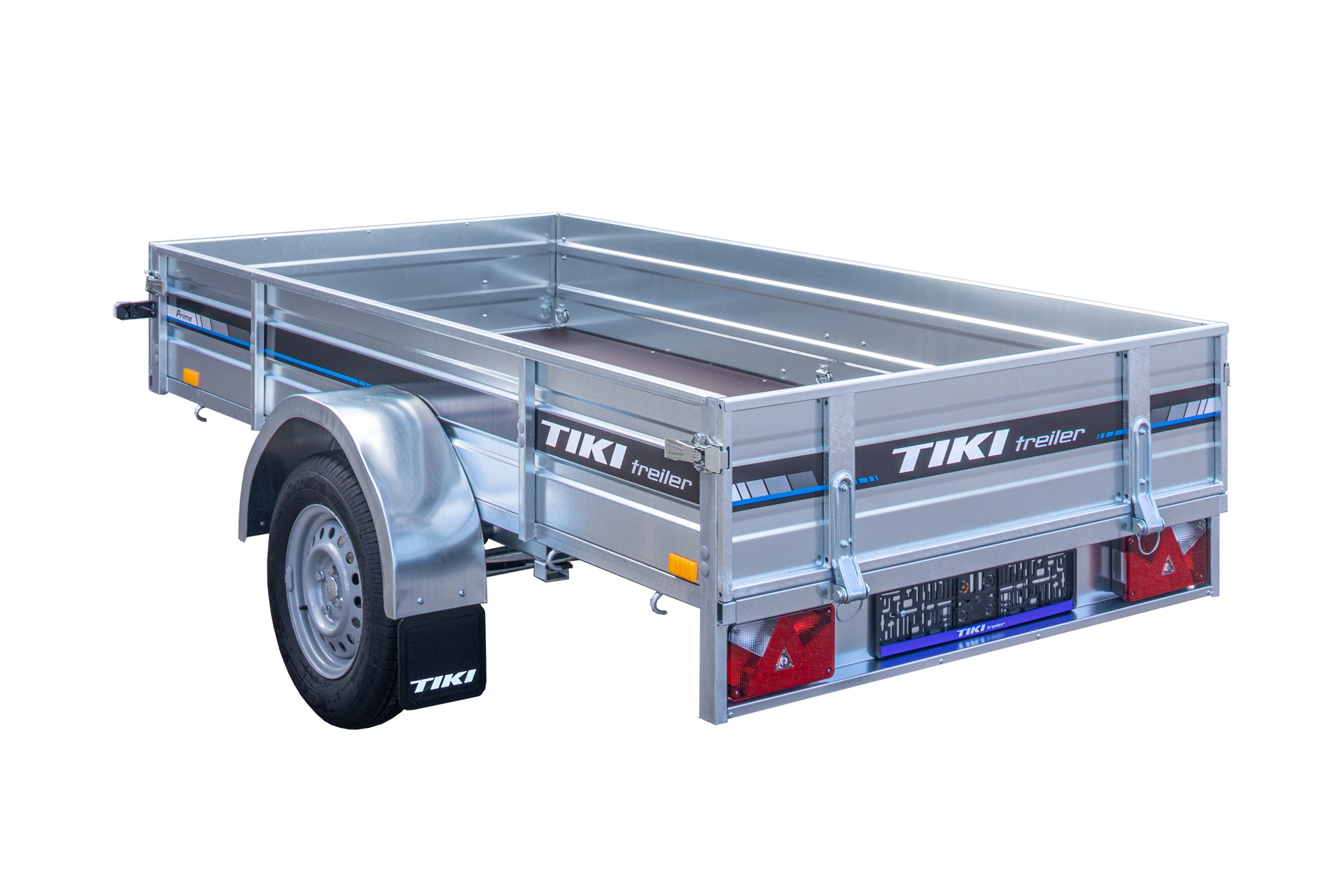

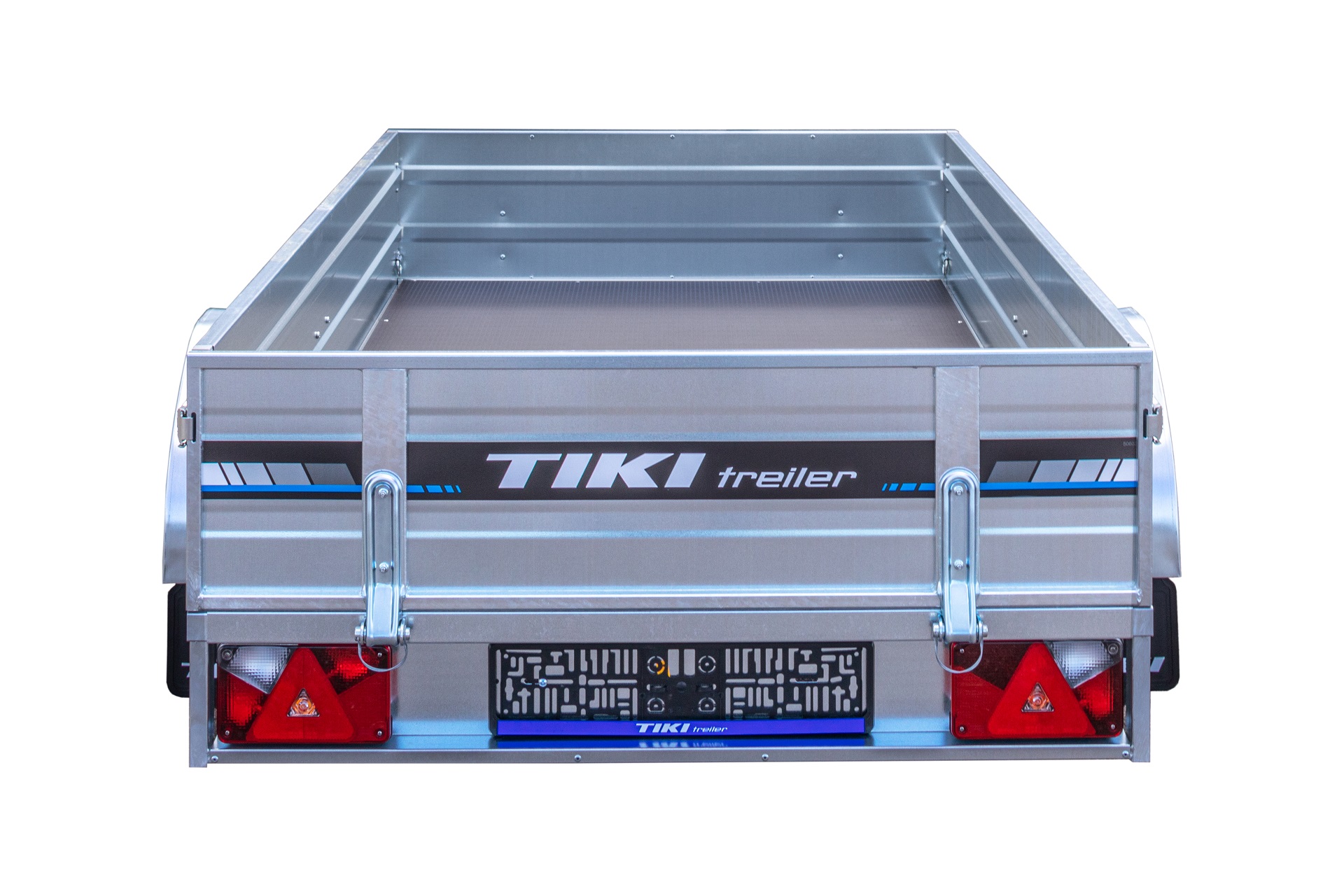

Flatbed Trailer CP250-L

Flatbed Trailer CP250-L

The CP250-L flatbed trailer is a reliable and versatile trailer suitable for transporting various types of cargo. It features a tipping body mechanism that facilitates loading and unloading. The construction is based on a welded frame assembled from sturdy parts, ensuring durability.

The trailer comes with a strong leaf-spring axle with 3-layer laminated springs, providing stability even when transporting heavier loads. The floor is made of laminated waterproof plywood, ensuring resistance to environmental conditions.

Additional convenience is provided by removable front and rear gates, a jockey wheel, as well as tie-down hooks (4+4) and rings (3+3) for securely fastening cargo. Balanced wheels with M+S tires ensure safe driving in various conditions, and a 7-pin connector guarantees safe operation of electrical equipment.

Registration with the relevant authority is required.

Specifications:
Model: CP250-L
Gross weight: 750 kg
Trailer weight: 228 kg
Payload: 522 kg
Side height: 0.33 m
Length: 3.88 m
Width: 1.64 m
Cargo box length: 2.52 m
Cargo box width: 1.23 m
Platform height from ground: 0.53 m
Frame: Welded frame
Brake system: None
Axle: Leaf-spring, strong 3-layer laminated springs
Tires: 155 R13 84N, 4×100, M+S
Body tipping mechanism: Yes
Gates: Removable front and rear
Floor: Laminated waterproof plywood
Jockey wheel: Yes
Tie-down hooks: 4 + 4 (outside body)
Tie-down rings: 3 + 3 (inside body)
Electrical connector: 7-pin plug
Wheels: Balanced, M+S tires
