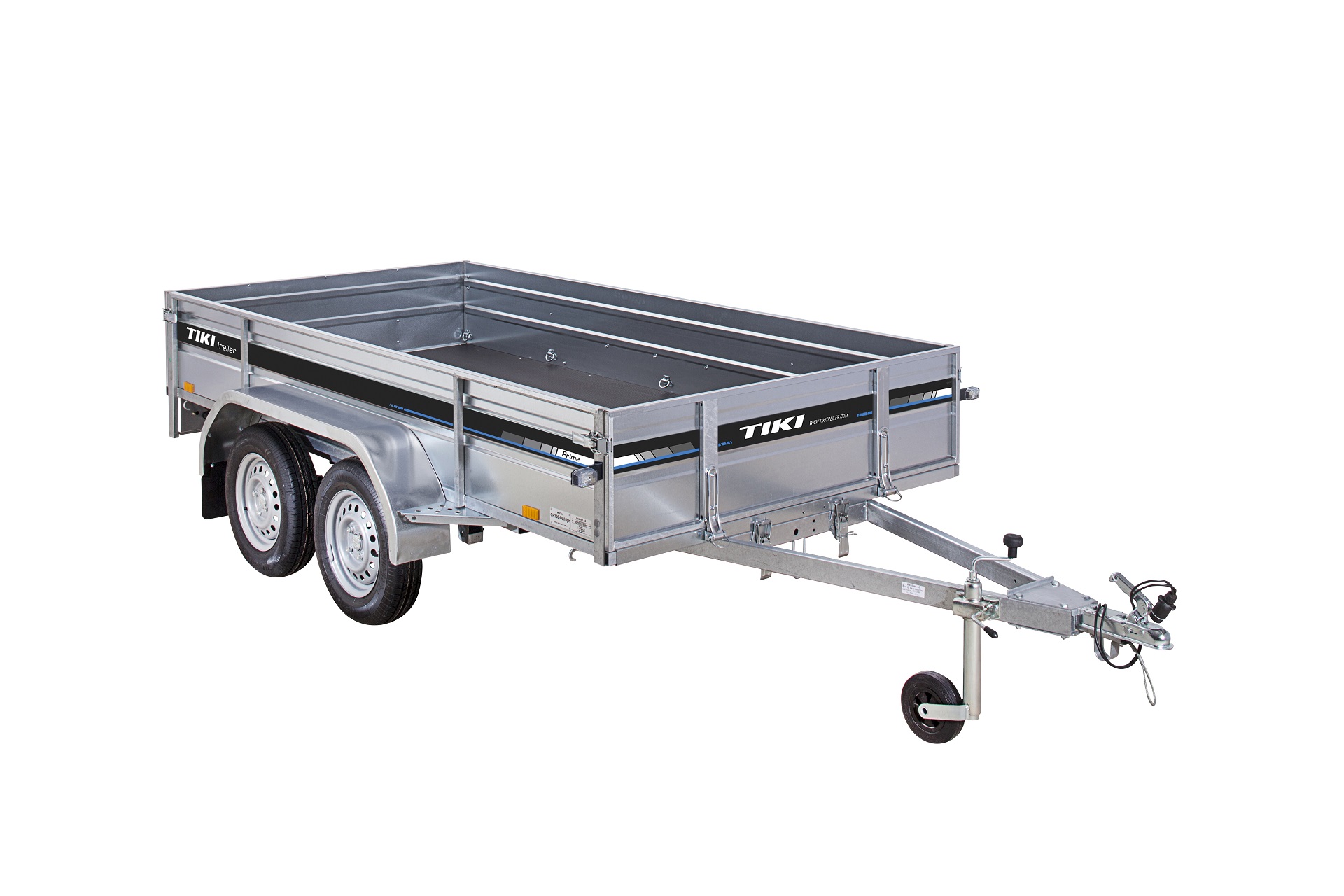

Flatbed Trailer CP300-DLH

Flatbed Trailer CP300-DLH

CP300-DLH is a reliable and versatile trailer with a payload of 410 kg. The strong welded frame ensures safe and stable cargo transport. The integrated tilting body mechanism facilitates loading and unloading.

The trailer has 2 leaf-spring axles with 3-layer leaf springs for smooth and reliable driving. The floor is made of laminated waterproof plywood for durability and moisture resistance.

Removable front and rear flaps can be used as ramps. External lashing bars with support legs, a jockey wheel, and additional support legs are provided for convenience.

Components are hot-dip galvanized and passivated for excellent corrosion resistance. Inside – 10 lashing points; outside – 4 hooks. Equipped with a 7-pin plug and balanced wheels with M+S tires (155 R13 84N, 4×100).

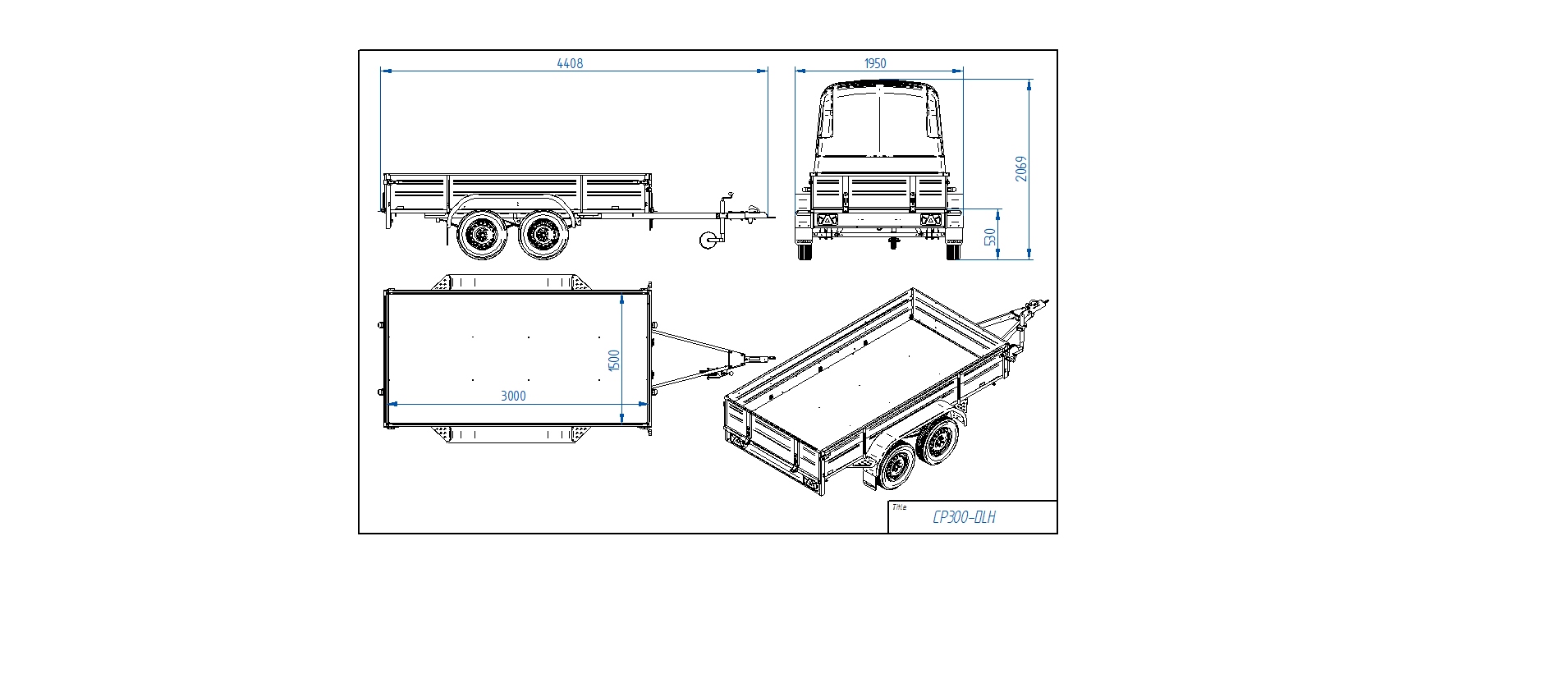

Specifications:
Gross weight: 750 kg
Trailer weight: 340 kg
Payload: 410 kg
Side height: 0.40 m
Length: 4.41 m
Width: 1.95 m
Cargo box length: 3.00 m
Cargo box width: 1.50 m
Platform height from ground: 0.53 m
Frame: Welded (laser-cut components)
Brake system: None
Axles: 2 × leaf-spring
Tires: 155 R13 84N, 4×100, M+S
Flaps: Removable front and rear; can be used as ramps
Lashing points: 10 inside, 4 hooks outside
Additional equipment: Tilting body mechanism, lashing bars with support legs, jockey wheel, support legs
Surface protection: Hot-dip galvanized and passivated components
Electrical connection: 7-pin plug
Wheels: Balanced with M+S tires
