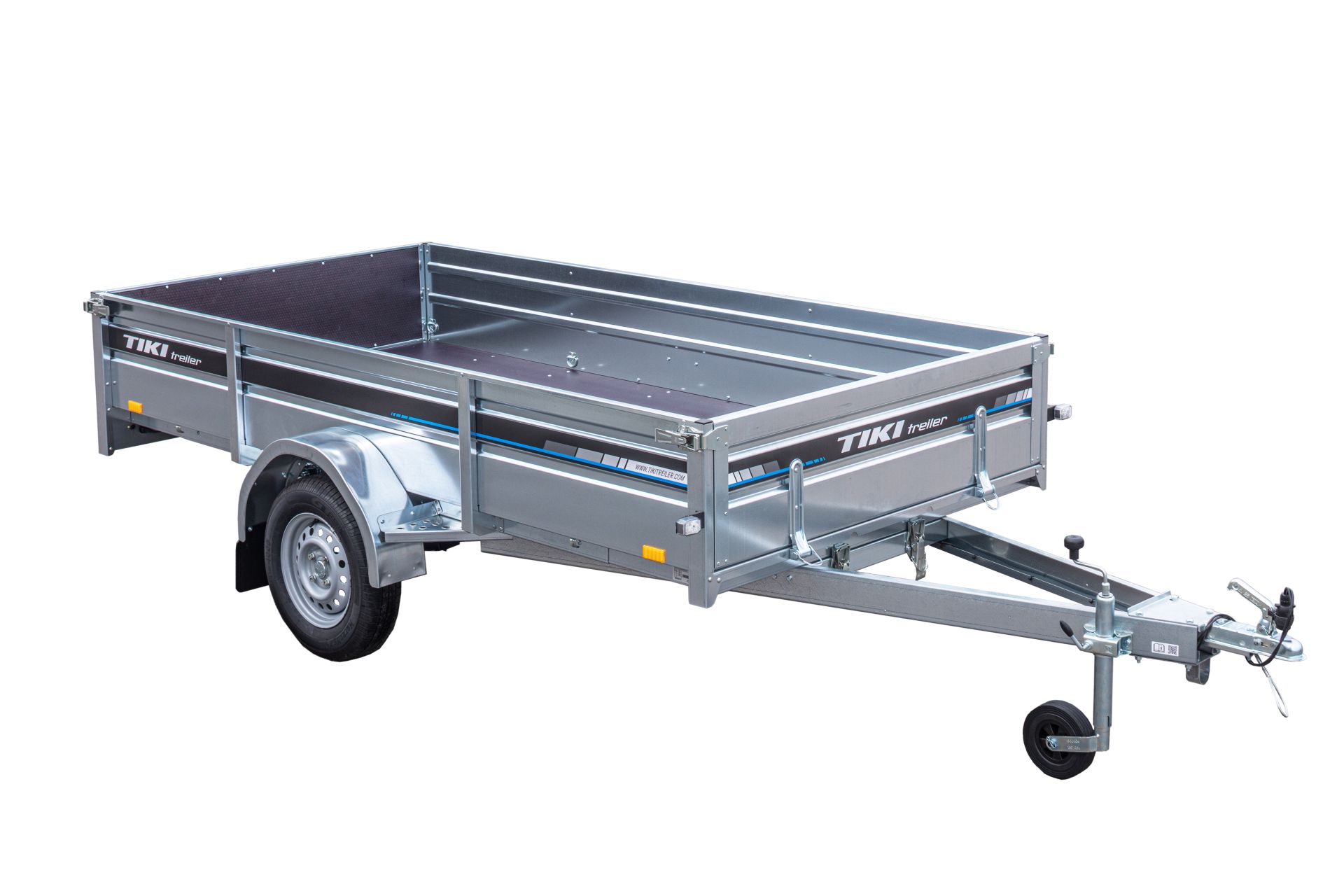

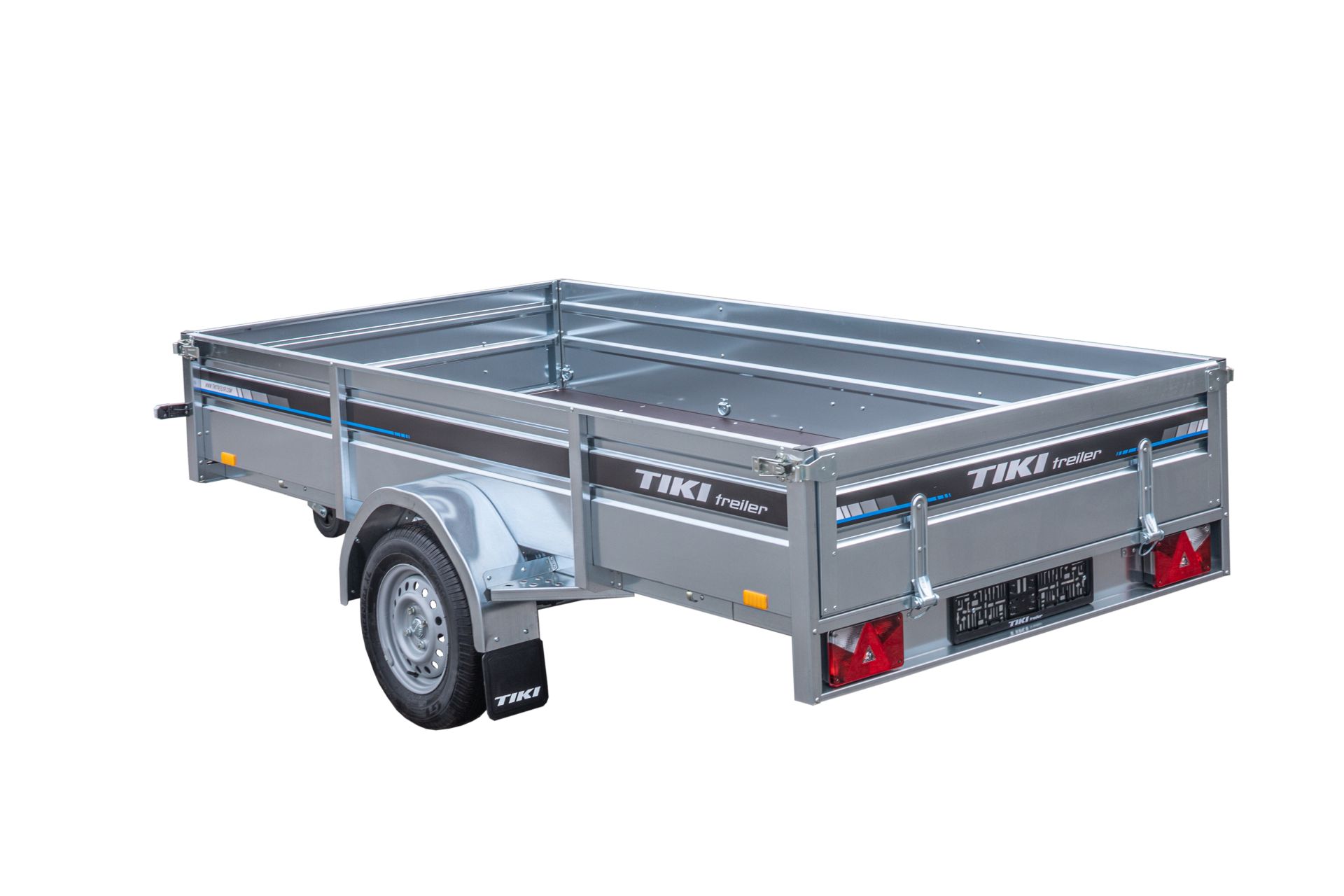

Flatbed Trailer CP327-LH

Flatbed Trailer CP327-LH

CP327-LH is a reliable trailer for cargo transport. Payload capacity – 452 kg, and the strong welded frame ensures secure transport. Cargo box dimensions – 3.27 × 1.50 m, and the integrated tipping body mechanism simplifies loading and unloading.

The trailer has a leaf-spring axle with 4-layer laminated springs, providing smooth driving even under heavier loads. Floors are made of laminated water-resistant plywood; platform height from ground – 0.56 m.

Removable front and rear flaps attach to the welded frame and can be used as ramps. External tie-down beams with footplates, a jockey wheel, and supports are included. Components are hot-dip galvanized and passivated for maximum corrosion resistance.

Inside – 10 tie-down loops; outside – 4 hooks. Electrical connection – 7-pin plug. Balanced wheels with M+S tires (155 R13 84N, 4×100).

Specifications:
Gross weight: 750 kg
Trailer weight: 298 kg
Payload: 452 kg
Side height: 0.40 m
Length: 4.66 m
Width: 1.88 m
Cargo box length: 3.27 m
Cargo box width: 1.50 m
Platform height from ground: 0.56 m
Frame: Welded (laser-cut components)
Brake system: None
Axle: Leaf-spring (4-layer laminated springs)
Tires: 155 R13 84N, 4×100, M+S
Tipping body mechanism: Yes
Tie-down beams: External, with footplates
Jockey wheel: Yes
Supports: Yes
Side profiles: Reinforced, 2 grooves
Flaps: Removable front and rear; can be used as ramps
Tie-down points: 10 loops inside, 4 hooks outside
Electrical connection: 7-pin plug
Wheels: Balanced
