Flatbed Trailer CP327-LH PRO

Flatbed Trailer CP327-LH PRO

CP327-LH PRO is a reliable and versatile trailer designed for intensive use. Payload – 439 kg, cargo box 3.27 × 1.50 m, and a strong welded frame with laser-cut components ensures structural rigidity and durability. An integrated tipping body mechanism facilitates loading and unloading.

The chassis with a leaf-spring axle (capacity 2000 kg) provides a high safety margin. The floor is laminated, water-resistant plywood; platform height from the ground – 0.56 m. External lashing bars with supports, a jockey wheel, and stabilizer legs are included.

Removable front and rear flaps (rear – reinforced plywood) can be used as ramps; the rear is additionally reinforced with 2 strengthening tubes. LED front lights improve visibility. Tow bar reinforced with struts; coupling device – 1500 kg.

Inside – 8 tie-down loops; outside – 4 hooks. Balanced wheels with reinforced “C” tires (155 R13C 91N, 5×112, M+S) and a 7-pin electrical plug ensure reliable connection.

Specifications:
Gross weight: 750 kg
Trailer weight: 311 kg
Payload: 439 kg
Side height: 0.40 m

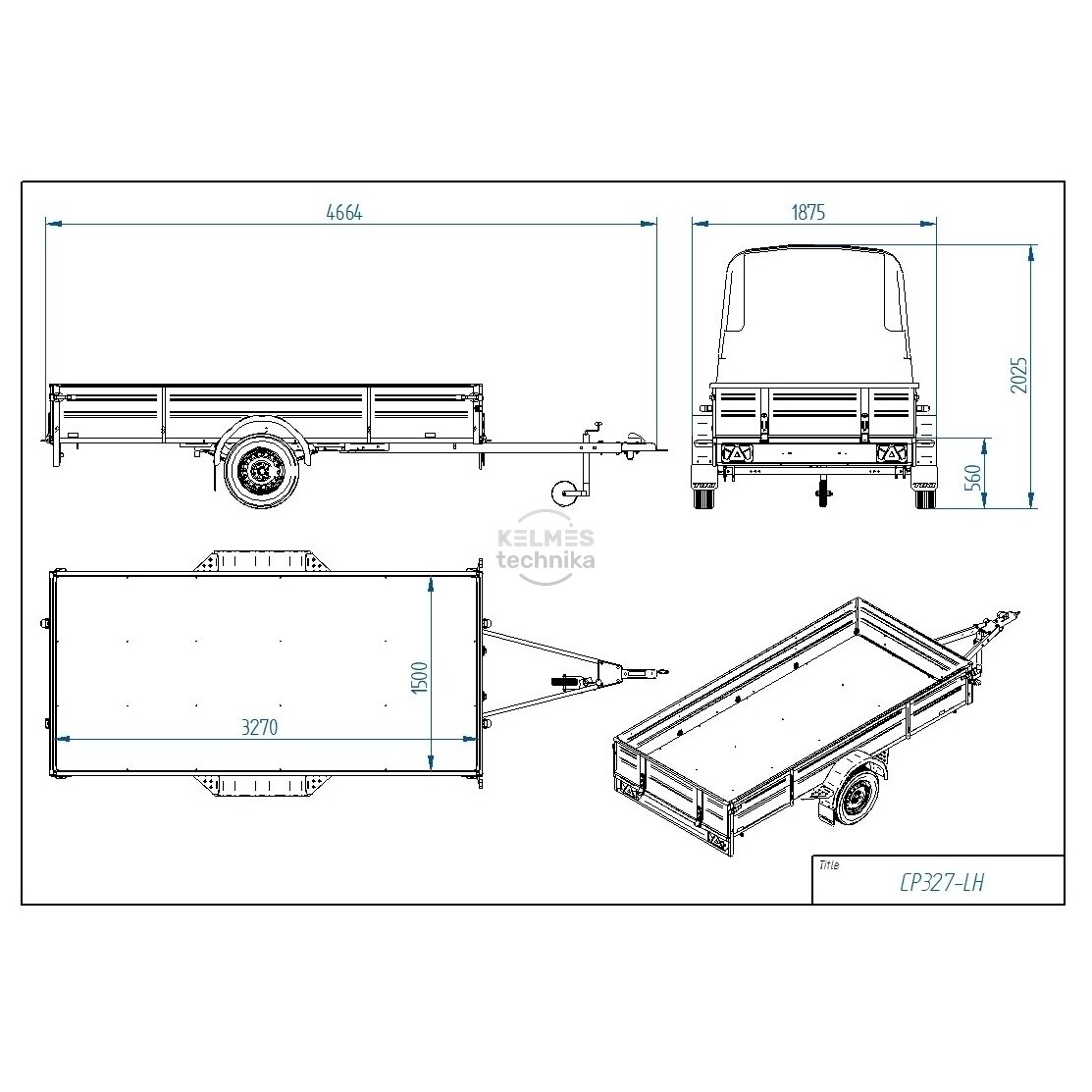

Length: 4.66 m
Width: 1.88 m
Cargo box length: 3.27 m
Cargo box width: 1.50 m
Platform height from ground: 0.56 m
Frame: Welded (laser-cut components)
Brake system: None
Axle: Leaf-spring, extra strong (2000 kg capacity)
Tires: 155 R13C 91N, 5×112, M+S (reinforced “C”)
Wheels: Balanced, fixed with 5 bolts (5×112)
Flaps: Removable front and rear; rear – reinforced plywood; can be used as ramps
Tipping body mechanism: Yes
Lashing bars: External, with supports
Jockey wheel: Yes
Stabilizer legs: Yes
Side profiles: Reinforced, 2 grooves
Rear panel reinforcement: 2× tubes
Tow bar: Reinforced with struts
Coupling device: 1500 kg
LED front lights: Yes
Tie-down points: 8 loops inside, 4 hooks outside
Electrical connection: 7-pin plug
