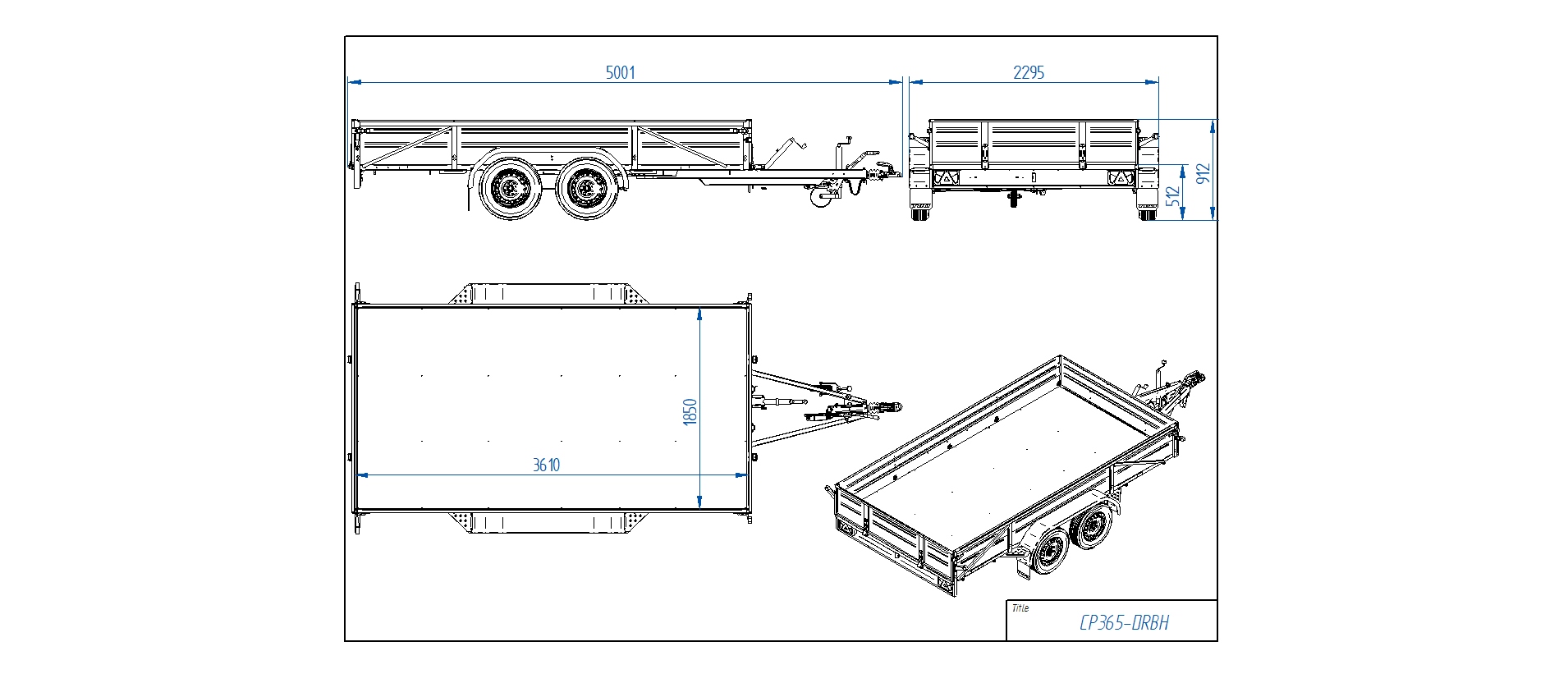

Flatbed Trailer CP365-DRBH

Side Trailer CP365-DRBH

The CP365-DRBH is a reliable two-torsion-axle trailer designed for transporting large cargo. With a payload of 1613 kg and a spacious 3.61 × 1.85 m cargo box, it ensures safe transport of bulky loads. The structure is based on a strong welded frame made of laser-cut parts.

The chassis with 2 torsion axles and a brake system provides stability and safety. The trailer features a tipping mechanism with a tilt screw to facilitate loading and unloading. The floor is made of laminated water-resistant plywood, and the side profiles are reinforced (2 grooves).

Externally, the trailer has lashing bars with foot supports, a jockey wheel, and support legs. Components are hot-dip galvanized and passivated for excellent corrosion resistance. Removable front and rear flaps can be used as loading ramps. Front LED lights are included. Inside – 10 lashing loops, outside – 8 hooks. Reliable coupling with a 13-pin connector. Tires: 155 R13 84N, 4×100, M+S.

Specification:
Total weight: 2100 kg
Trailer weight: 487 kg
Payload capacity: 1613 kg
Side height: 0.40 m
Length: 5.00 m
Width: 2.29 m
Cargo box length: 3.61 m
Cargo box width: 1.85 m
Frame: Welded (laser-cut parts)
Brake system: Yes
Axles: 2 × torsion
Tires: 155 R13 84N, 4×100, M+S
Tipping mechanism: Yes (tilt screw)
Lashing bars: External, with foot supports
Jockey wheel: Yes
LED front lights: Yes
Support legs: Yes
Side profiles: Reinforced, 2 grooves
Surface protection: Hot-dip galvanized and passivated
Flaps: Removable front and rear; can be used as ramps
Lashing points: 10 loops inside, 8 hooks outside
Electrical connection: 13-pin connector
Wheels: Balanced, with M+S tires
