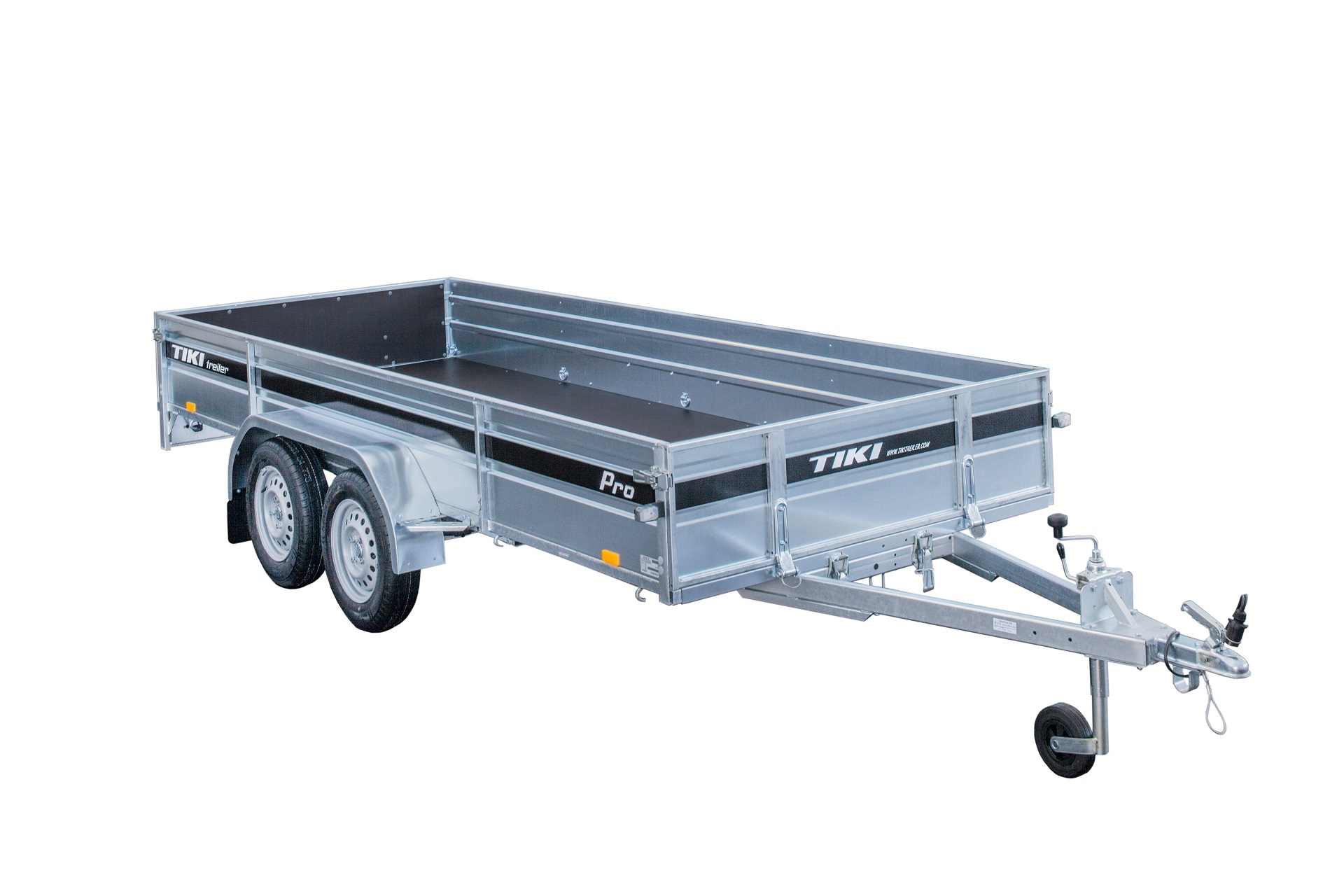

Flatbed Trailer CP400-DLH PRO

Side Tipper Trailer CP400-DLH PRO

The CP400-DLH PRO is a robust and long trailer with a payload capacity of 368 kg. Its 4.00 × 1.48 m cargo box allows convenient transportation of longer loads. A strong welded frame made from laser-cut components ensures rigidity and long-term durability.

The integrated tipping mechanism simplifies loading and unloading. A chassis with two leaf-spring axles ensures stable and smooth driving, while the laminated water-resistant plywood floor provides durability against moisture.

Removable front and rear flaps, with the rear made of reinforced plywood, can be used as loading ramps. The trailer is equipped with LED front lights, external lashing bars with foot supports, a jockey wheel, and stabilizer legs. The drawbar is reinforced with braces, and the coupling device is rated for 1500 kg.

Inside there are 10 lashing points, and outside – 8 hooks. Electrical connection is via a 7-pin plug. Balanced wheels with M+S tires (155 R13 84N, 4×100). Brake system – none.

Specification:
Total weight: 750 kg
Trailer weight: 382 kg
Payload capacity: 368 kg
Side height: 0.40 m
Length: 5.40 m
Width: 1.88 m
Cargo box length: 4.00 m
Cargo box width: 1.48 m
Frame: Welded (laser-cut components)
Brake system: None
Axles: 2 × leaf spring
Tires: 155 R13 84N, 4×100, M+S
Tipping mechanism: Yes
Lashing bars: External, with foot supports
Jockey wheel: Yes
LED front lights: Yes
Rear flap: Reinforced plywood; removable flaps
Stabilizer legs: Yes
Drawbar: Reinforced with braces
Coupling device: 1500 kg
Lashing points: 10 inside, 8 hooks outside
Electrical connection: 7-pin plug
Wheels: Balanced, with M+S tires
