Flatbed Trailer CS300-LH

Flatbed Trailer CS300-LH

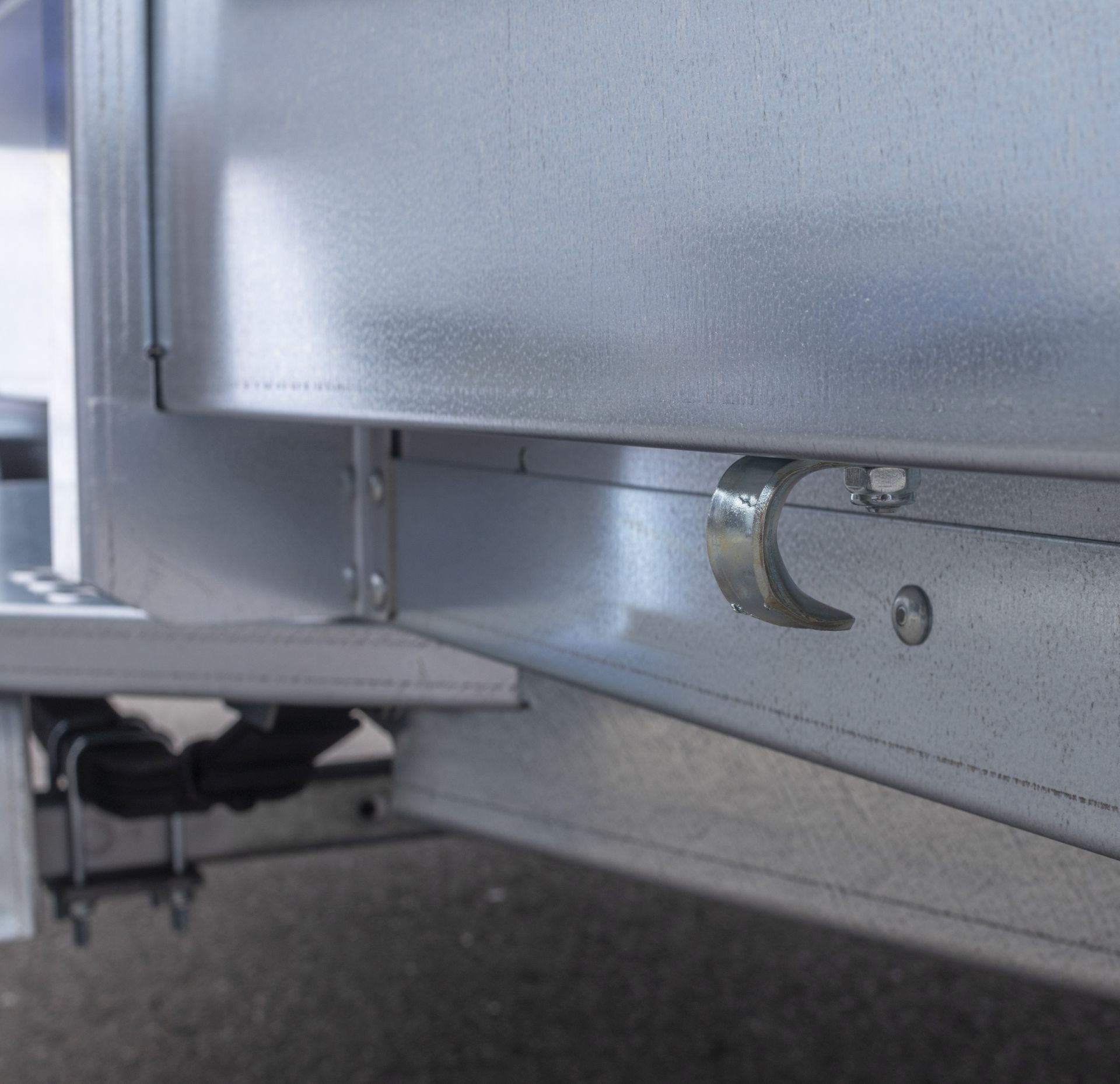

The CS300-LH flatbed trailer is a versatile and reliable trailer designed for transporting various cargo. It features a strong leaf-spring axle with four-layer laminated springs, providing stability and durability even under heavy use. The tipping body mechanism allows for easy unloading, while removable front and rear gates offer additional flexibility. Reinforced plywood rear gate, lashing beams with steps, and double-grooved side profiles increase the trailer’s structural strength. The trailer comes with a jockey wheel, LED lights, integrated tie-down rings, and external hooks. Balanced wheels with M+S tires ensure safe driving in all conditions, making this trailer suitable for both domestic and professional use.

Registration with the relevant authority is required.

Specifications:
Gross weight: 750 kg
Trailer weight: 247 kg
Payload: 503 kg
Side height: 0.40 m
Length: 4.34 m
Width: 1.87 m
Cargo box length: 3 m
Cargo box width: 1.5 m
Platform height from ground: 0.54 m
Frame: Bolted frame
Brake system: None
Axle: Leaf-spring
Tires: 155 R13 84N 4x100 M+S
