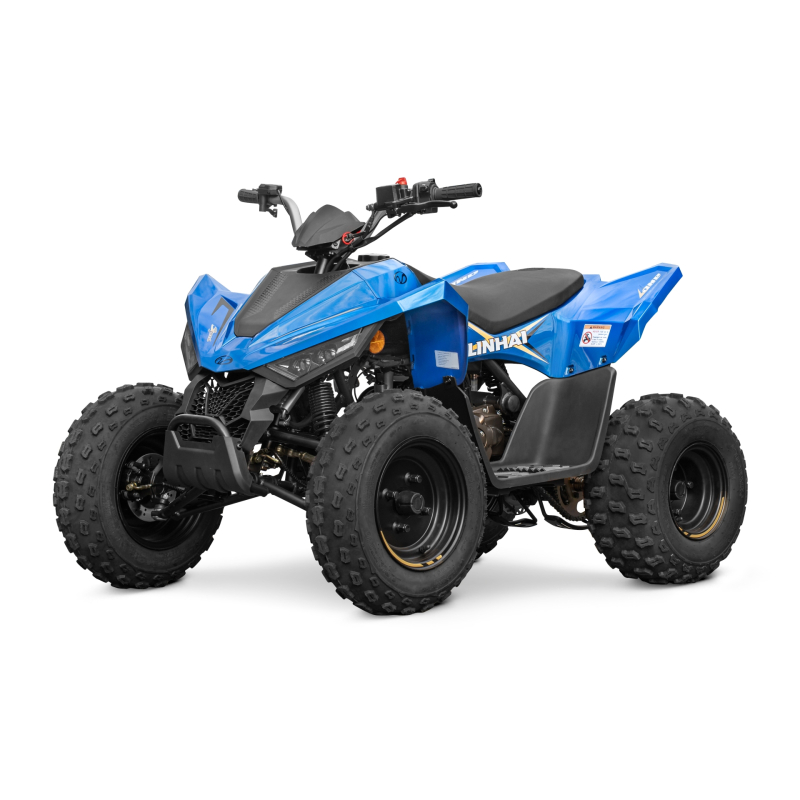

Petrol ATV LINHAI ATV 110

Linhai 110 Junior – a modern youth ATV designed for safe and comfortable development of first off-road riding skills. The 107 cm³ four-stroke engine with electronic fuel injection (EFI) ensures smooth operation, economical fuel consumption, and easy starting in various weather conditions.

The automatic CVT transmission with forward, neutral, and reverse gears makes the ATV simple and convenient to operate, allowing the young rider to focus more on safe riding.

Reliable and easy to control

• 107 cm³ four-stroke single-cylinder EFI engine

• 6.4 hp (4.7 kW) power

• Automatic CVT transmission with reverse (F/N/R)

• Rear-wheel drive (2x4)

• Chain final drive

• Electric start

• Maximum speed – 45 km/h

Safety comes first

• Magnetic emergency engine shut-off system in case of a fall

• Adjustable maximum speed for beginners

• Hydraulic disc brakes at the front and rear

• Full LED lighting for improved visibility

• CE compliant

Comfortable chassis

• Independent front suspension with double A-arms

• Rear swingarm suspension with solid axle

• Hydraulic shock absorbers with adjustable spring preload

• LCD instrument panel with gear indicator and mileage information

• Steel wheels

• Off-road tires

Technical specifications

Engine: four-stroke, single-cylinder, air-cooled
Displacement: 107 cm³
Maximum power: 6.4 hp (4.7 kW)
Maximum torque: 7.5 Nm / 5500 rpm
Fuel system: electronic fuel injection (EFI)
Starting system: electric
Bore × stroke: 52.4 × 49.5 mm
Maximum speed: 45 km/h
Drive: 2x4, rear-wheel drive
Transmission: automatic CVT with reverse (F/N/R)
Final drive: chain
Front suspension: independent, double A-arm
Rear suspension: swingarm with solid axle
Shock absorbers: hydraulic, adjustable spring preload
Front brakes: hydraulic disc
Rear brakes: hydraulic disc
Front tires: AT19×6-10
Rear tires: AT18×9-8
Wheels: steel
Length: 1483 mm
Width: 945 mm
Height: 930 mm
Wheelbase: 1030 mm
Ground clearance: 110 mm
Weight: 108 kg
Fuel tank capacity: 6.6 l
Lighting: full LED
Instrument panel: LCD display with gear indicator and mileage
Speed limiter: yes
Emergency engine shut-off: magnetic safety system
Homologation: no
Compliance: CE
